Marvilon Technology: Advanced Optical Measurement Systems
Overview
Marvilon develops integrated optical measuring systems for continuous industrial process monitoring. Unlike conventional solutions that measure only gas composition, dust, or moisture, our system simultaneously tracks all essential parameters in real-time, enabling precise process control and regulatory compliance.
Core Technology Components

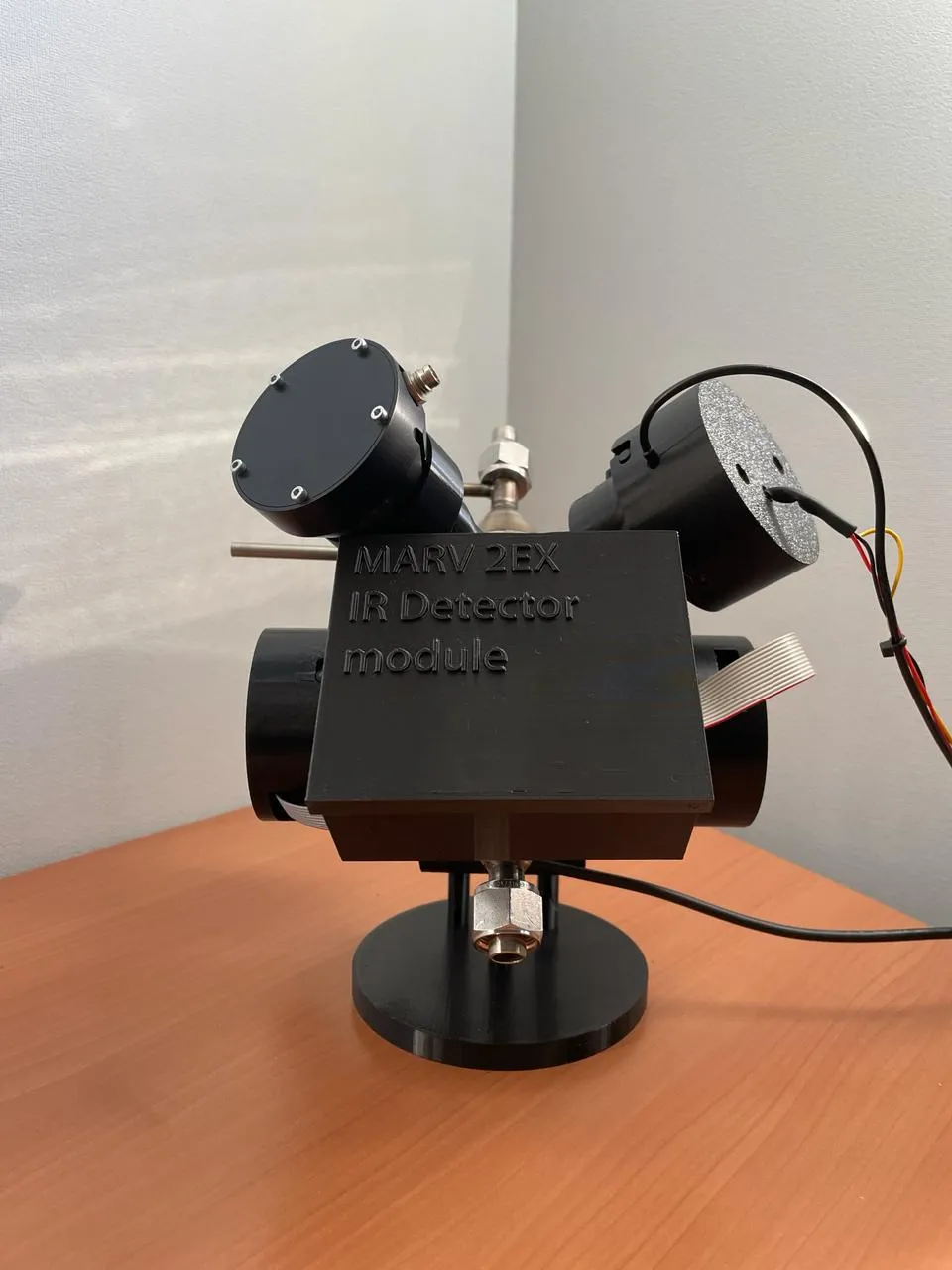

1. Optical Measurement Cell
- Measures multiple gas species: CO, CO₂, NO, NO₂, NH₃, CH₄
- Detects particulate matter: PM1, PM2.5, PM10
- Measures moisture content in flue gas streams
- Measurement method: Non-dispersive IR (NDIR) for gases; UV/Vis absorption for reactive species; forward-scattering laser photometry for dust
Detection limits:
- Dust (PM): up to 300 mg/m³
- Moisture: up to 40%
- CO: up to 70%
- CO₂: up to 30%
- CH₄: up to 10%
- Other gases: on request
Optimized optical path for high sensitivity and minimal cross-sensitivity
2. Automated calibration
Automated reference measurement and field calibration with the use of certified optical filters scheduled from 1 hour period for 100% guarantee of true measurementss
3. Sampling System
- High-efficiency isokinetic probes to capture representative samples in high-dust and high-moisture flue gas streams
- Purge-controlled channels prevent condensation and optical fouling
- Configured for ATEX Zone 1 & 2 hazardous environments
- Temperature handling: -20°C to 200°C; pressure: 0.5 – 2 bar
Prototype Development & Validation
Design & Engineering
- 3rd-generation optical cell developed using CAD and computational fluid dynamics (CFD) to optimize flow and minimize particle deposition
- Electrical schematics designed for embedded control of sensors, pumps, and purge valves
- Modular IR/Vis optical modules for rapid upgrades and maintenance
- Six fully integrated prototypes produced for lab and field testing
Laboratory Testing
- Conducted using certified gas mixtures and NIST-traceable particulate standards
- Calibrated across operational ranges with linear regression verification
- Environmental tests: humidity 0–100%, temperature -20°C to 200°C, particulate load up to 500 mg/m³
- Validation against DSTU EN 15267:2024 standards for air quality monitoring
Embedded Control & Data Acquisition
- Real-time acquisition of 6 gas species + particulate matter + moisture
- Sampling frequency: 1 Hz (1 measurement per second)
- Data storage with timestamped logs and remote monitoring via secure web interface
- Built-in calibration routines using certified gas standards and optical references
Field Deployment
- Embedded software enables remote acquisition, monitoring, and calibration
- Pilot installations in metallurgical and petrochemical plants
- Continuous operation validated with uptime >99% over 3-month trial period
- Rapid fault detection with automated alerts
Why the Technology Works
Captures all critical emissions and process parameters in one system.
Detects trace levels of gases and fine particulates with precision suitable for regulatory compliance.
Designed to operate reliably in explosive, wet, and high-dust environments.
Optical and sampling modules can be swapped or upgraded without redesigning the whole system.
